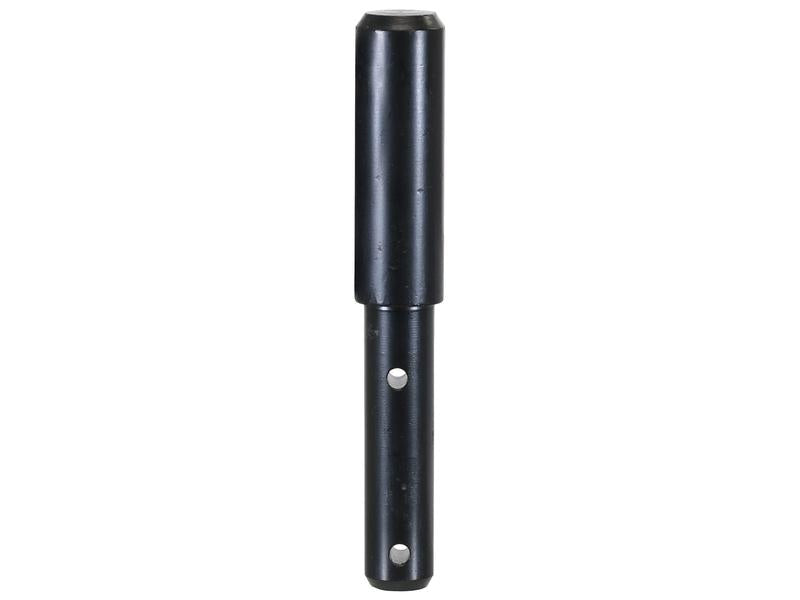

Pin Ø: 22 - 28mm, Working length 23 - 78mm Overall length: 180mm, Hole Ø: 5mm EPD Plated Cathodic Electrode Deposition, giving 7 times longer corrosion and external effect protection, when compared to the standard rangeMaterial: EN8 Steel
Alternative to = Lower link pin - Dual category 22 - 28mm Cat.1/23540https://75025d40dd58ab042ef4-3509ef0b9210fbf84c18b36ced24de7a.ssl.cf3.rackcdn.com/imagelibrary_sml/3540_pic1.jpgSparexPin Ø: 22 - 28mm, Working length 23 - 78mm Overall length: 180mm, Hole Ø: 5mmMaterial: EN8 Steel3540
A Ø (ins) = 1-1/8
A Ø (mm) = 28
Brand = Sparex
B Ø (ins) = 7/8
B Ø (mm) = 22
C (ins) = 29/32
C (mm) = 23
Category = 1/2
Colour = Black
D (ins) = 2-1/8
D (mm) = 54.5
Duty = Heavy
Finish = EPD Plated
Hole Spacing Vertical = 7/32
Hole Ø (mm) = 5
Material = EN8 Steel
Notes = Cathodic Electrode Deposition, giving 7 times longer corrosion and external effect protection, when compared to the standard range
Overall length (ins) = 7-3/32
Overall length (mm) = 180
Pin Type = Dual Category
Pin Ø (ins) = 7/8 - 1-1/8
Pin Ø (mm) = 22 - 28
Tariff Code = 7319909000
Working length (ins) = 29/32 - 3-5/64
Working length (mm) = 23 - 78
Suitable For Information
This product is not associated with any particular make or model
OEM Fitment Information
This product is not associated with any particular OEM part number
