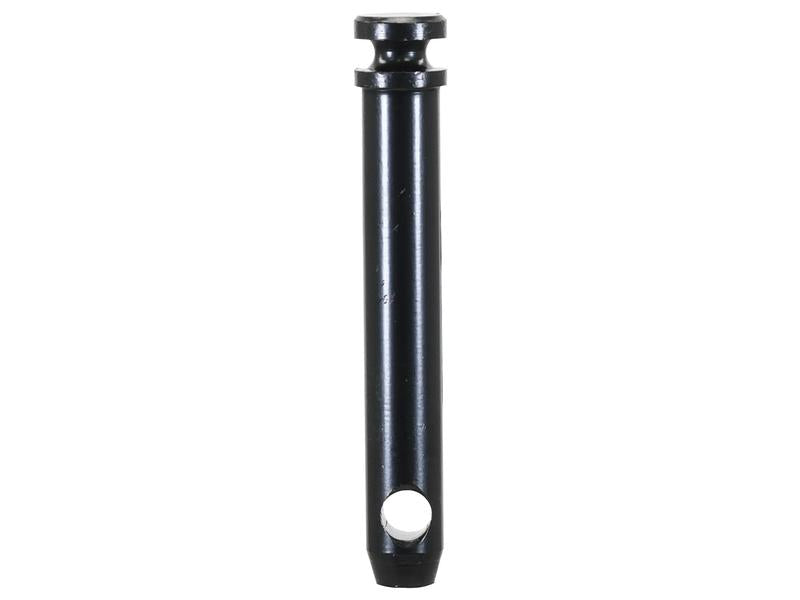

Pin Ø: 19mm, Working length:102mm, Overall length: 138mm, Head Ø: 22mm, Hole Ø: 12mm EPD Plated Cathodic Electrode Deposition, giving 7 times longer corrosion and external effect protection, when compared to the standard rangeMaterial: EN8 Steel
Alternative to = Top link pin 19x102mm Cat. 174https://75025d40dd58ab042ef4-3509ef0b9210fbf84c18b36ced24de7a.ssl.cf3.rackcdn.com/imagelibrary_sml/74_pic1.jpgSparexPin Ø: 19mm, Working length:102mm, Overall length: 138mm, Head Ø: 22mm, Hole Ø: 12mm Material: EN8 Steel74
A Ø (ins) = 15/32
A Ø (mm) = 12
Brand = Sparex
B Ø (ins) = 7/8
B Ø (mm) = 22
C (ins) = 4
C (mm) = 102
Category = 1
Colour = Black
Duty = Heavy
Finish = EPD Plated
Head Ø (Ins) = 7/8
Head Ø (mm) = 22
Hole Ø (ins) = 1/2
Hole Ø (mm) = 12
Material = EN8 Steel
Notes = Cathodic Electrode Deposition, giving 7 times longer corrosion and external effect protection, when compared to the standard range
Overall length (ins) = 5-7/16
Overall length (mm) = 138
Pin Type = Standard
Pin Ø (ins) = 3/4
Pin Ø (mm) = 19
Tariff Code = 7319909000
Working length (ins) = 4-1/32
Working length (mm) = 102
Suitable For Information
This product is not associated with any particular make or model
OEM Fitment Information
This product is not associated with any particular OEM part number
