Sparex  |  SKU: SP-144047

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 620mm. | Sparex Part No.S.144047 24.0 kg

€606,95 EUR
Tax included Shipping calculated at checkout.


Warranty Information

Farmingparts.com offers a 1-year manufacturer's warranty on tractor parts and equipment, covering manufacturing defects.

Warranty return costs are borne by the customer.

Buckler boots have a unique "Body & Sole - Together Forever" warranty, addressing manufacturing defects like sole detachment or waterproof boots leaking. To claim, customers must provide photos of the boots, including overall views, labels, soles, and any visible damage. Claims are forwarded to Buckler for approval. Approved claims result in a free replacement.

Delivery and Shipping

Farming Parts ships globally, using couriers like Royal Mail, Parcelforce, and FedEx, with all items sent tracked or signed for services.

Customers can cancel orders until dispatch but not after.

Returns are accepted within 14 days of receipt at the customer's expense.

Delivery details depend on the accuracy of customer-provided information.

For visibly damaged packages, inspect before accepting.

Additional charges may apply for large items, and customs duties for non-EU countries are the customer's responsibility. For detailed shipping information, please visit Farming Parts' shipping policy.

Customs Fees & Taxes

When importing goods from abroad, customers may incur customs fees set by their local authority, not by Farming Parts. Unpaid customs fees can result in the return of goods to Northern Ireland, with return and customs costs deducted from refunds, plus a 10% handling fee.

Customs duty typically reflects local taxes on imported items. Customers should be aware of these charges and consult Farming Parts staff if uncertain.

Returns Policy

Farming Parts accepts returns within 14 days for unused parts and merchandise, with a 1-year warranty on parts.

Return postage is the customer's responsibility, except for staff-recommended parts or incorrect items.

Clothing returns are also accepted within 14 days, with a 21-day refund/exchange policy.

International returns follow similar guidelines, but customers cover courier and customs costs.

Stock clearance sale items are non-returnable.

Farming Parts prioritizes customer satisfaction and is always available to assist.

For more details, visit their returns policy page.

Tractor Make & Model Parts Filter

Using the parts filter is simple and efficient:

  1. Select the Make of your Tractor, such as Massey Ferguson.
  2. Next, choose the specific Model of your tractor from the available options, for example, MF 3050 2WD.
  3. Once you have made your selections, the form will automatically search the database for the parts that match your tractor.

It’s that easy! Find the parts you need quickly and accurately.

**Please Note - Due To The Number Of Makes & Models Covered The Filters May Take A Few Seconds To Fully Load**

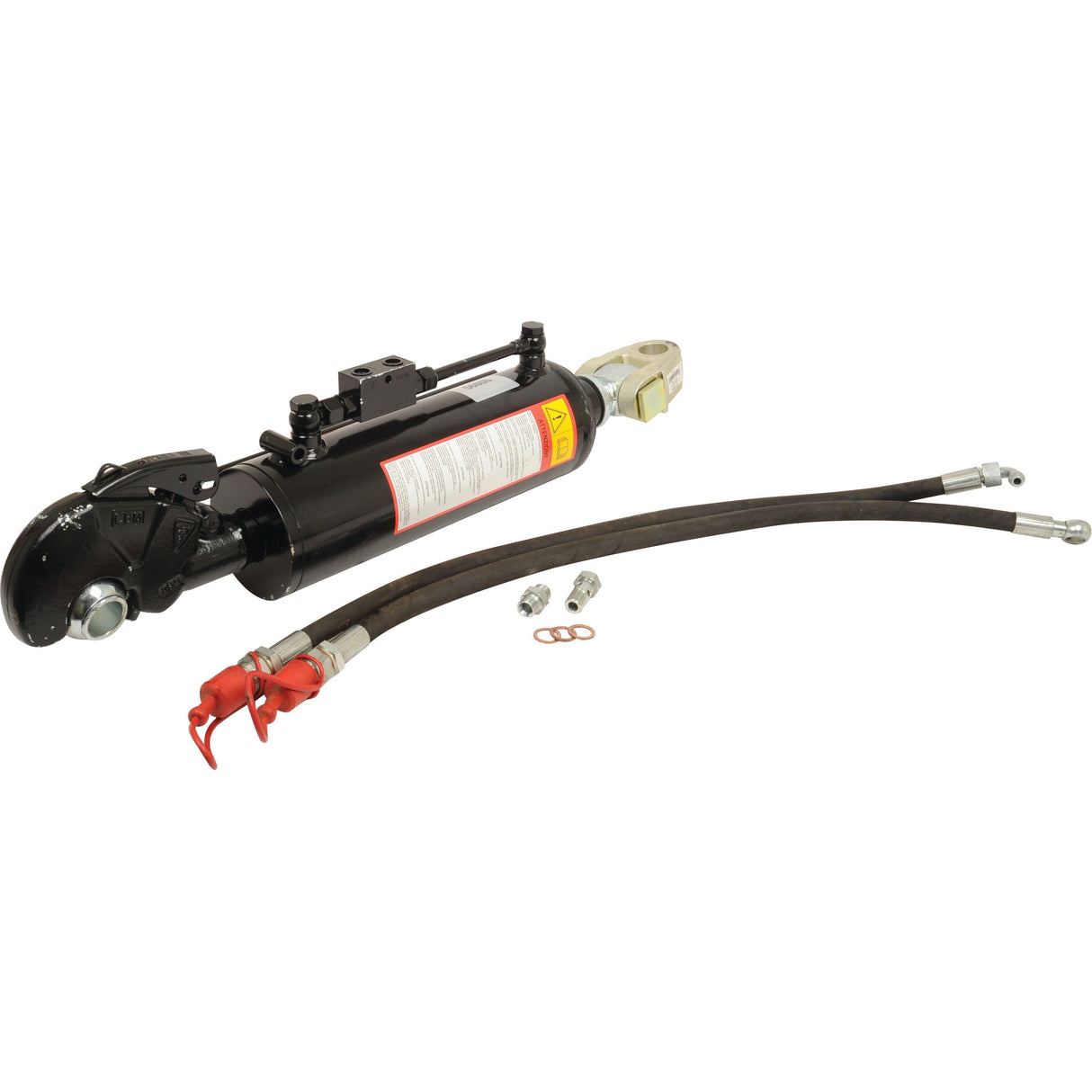

Hydraulic Top Link (Cat.3/3) - 90mm Bore, 620mm Min. Length

- **Heavy-duty hydraulic top link for tractors up to 200hp (147kW)**
- **Category 3/3 compatibility for a wide range of tractor models**
- **Powerful lifting capacity of 8770kg at 180 bar**
- **Robust knuckle and Q.R CBM hook for secure implement attachment**
- **Includes hose set, chain & ball, and marker label for easy installation**

Introducing the Hydraulic Top Link (Cat.3/3) featuring a robust Knuckle and Q.R CBM Hook, designed for superior performance in agricultural applications. With a cylinder bore of 90mm and a minimum length of 620mm, this top link is engineered to provide exceptional lifting capabilities.

Product Specifications
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 3
  • Check Valve Position: 45°
  • Cylinder Bore: 90 mm

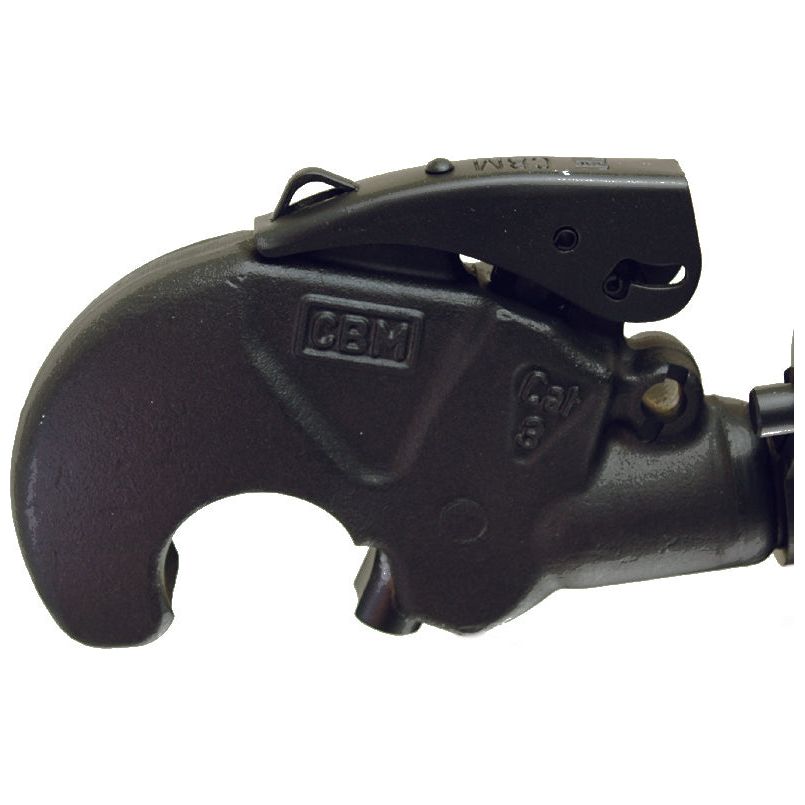

  • Implement End: Q.R CBM Hook
  • Lift Capacity @ 180 bar: 8770 kg
  • Maximum Length: 840 mm
  • Minimum Length: 620 mm
  • Rod Diameter: 45 mm
  • Suitable for Tractors up to: 200 hp (147 kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust @ 180 bar: 11700 kg

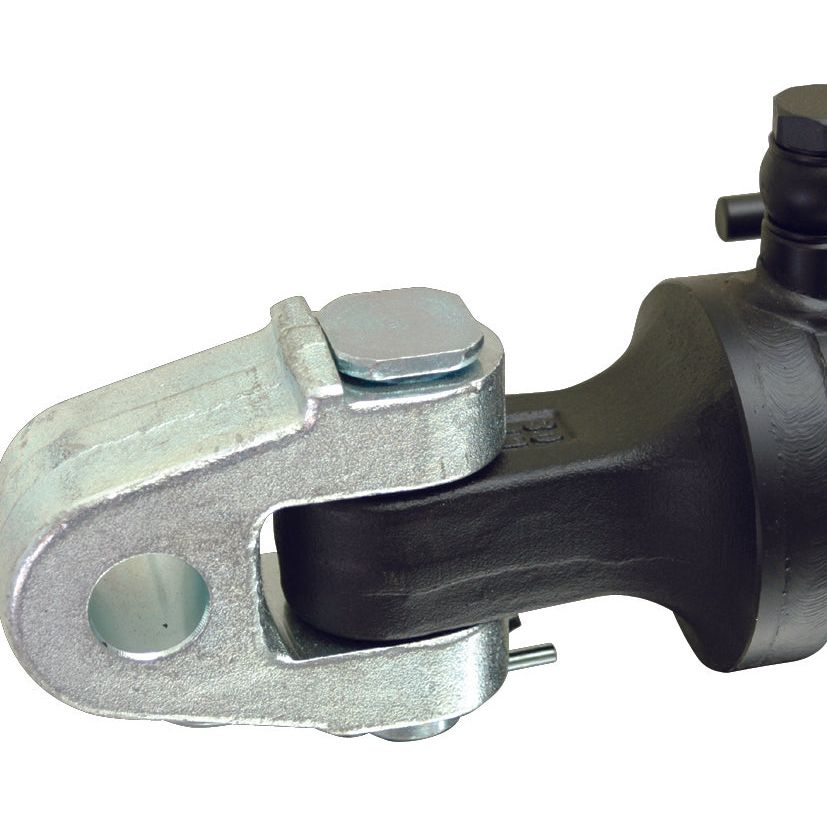

  • Tractor End: Knuckle
Compatible Tractors

This hydraulic top link is compatible with a variety of tractor models, including:

  • Hurlimann: XT105, XT115, XT95
  • John Deere: 6105R, 6115R, 6125R, 6130R, 6140R, 6150R, 6170R, 6190R, 6210R
  • Lamborghini: 105 FORMULA, 115 FORMULA, 1556
  • Massey Ferguson: 5S.105 DYNA 4, 5S.105 DYNA 6, 5S.115 DYNA 4, 5S.115 DYNA 6, 5S.125 DYNA 4, 5S.125 DYNA 6, 5S.135 DYNA 4, 5S.135 DYNA 6, 5S.145 DYNA 4, 5S.145 DYNA 6
  • McCormick: ZTX230, ZTX260, ZTX280
  • Same: ANTARES 130, ANTARES 150, IRON 100, IRON 110, IRON 115, IRON 120, IRON 125, SILVER 110, SILVER 115, SILVER 130, SILVER 145, SILVER 160, SILVER 180, SILVER 190, TITAN 145, TITAN 150, TITAN 160, TITAN 165, TITAN 190, TITAN 195
  • Valmet & Valtra: G105, G115, G125, G135
Manufacturer Information

Part Number: Massey Ferguson ACW231650C
