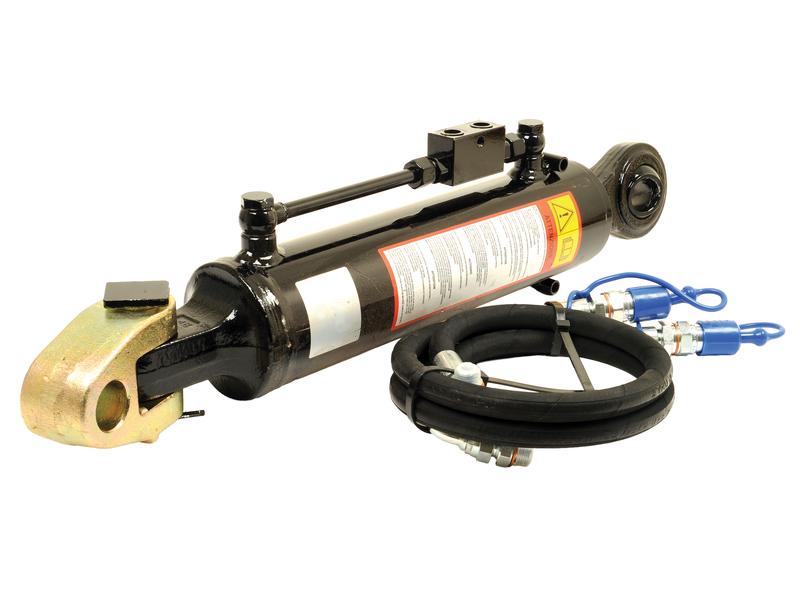

Sparex Hydraulic Top Link (Cat.4/4 (Ø45/45mm)) Knuckle and Ball, Cylinder Bore: 120mm, Min. Length : 760mm. (Sparex part number S.173649) is listed with the product information below, taken from the supplied Sparex product page.
Product Specifications
| A (mm) |
205 |
| Barcode 128 |
S.173649 |
| Barcode EAN13 |
5045161736493 |
| Brand |
Sparex |
| Category Implement End |
4 (Ø45mm) |
| Category Tractor End |
4 (Ø45mm) |
| Category |
4/4 (Ø45/45mm) |
| Check Valve Position |
Top |
| Cylinder Bore (ins) |
4-11/16 |
| Cylinder Bore (mm) |
120 |
Suitable For
Ford / New Holland: T9.390, T9.435, T9.450, T9.480, T9.505, T9.530, T9.560, T9.565, T9.600, T9.615, T9.645, T9.670, T9.700
John Deere: 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R
